Please use the reference image and instructions below to determine the fencing components you will need to build your R-01 Shoemaker black ornamental fence. Add all necessary components to your cart right from this page. Not sure what you need or how to calculate? Use our custom fence builder feature, located at the bottom of this page.
Definitions :
- Fence line – a section of fence with no gates.
- End posts – post where fence line terminates and does not continue in another direction.
- Corner posts – where fence line terminates but continues in another direction.
- Gate end posts – a post used for gate that has a fence connection.
- Gate blank post – a post used for gate that does not have any fence connections.
Procedure :
- Draw proposed fence.
- Identify end posts, corner posts, and gate locations.
- Measure fence lines and gate locations.
- Add up your fence line measurements and divide them by 6. This is the number of panels you will need.
- Subtract the number of fence lines you need from the number of panels needed. This is how many line posts are needed.
- Add the number of other posts, gates and gate posts needed.
- Each gate requires one set of hinges and one latch. Add those as-needed.
- If you need a double gate, add either two 48″ or two 60″ gates to the cart, along with 2 hinges, 1 latch & 1 drop rod.
Main Components

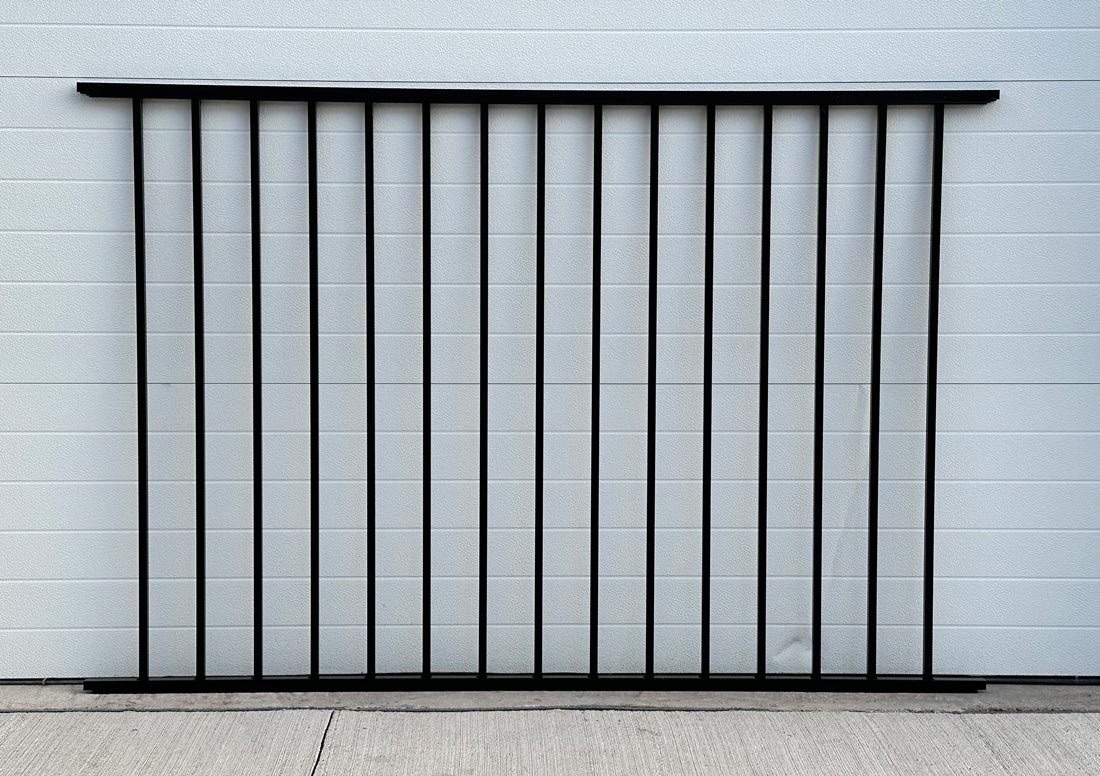

Aluminum Ornamental Section - R-01 Shoemaker
72" wide x 48" high two (2) rail black aluminum...

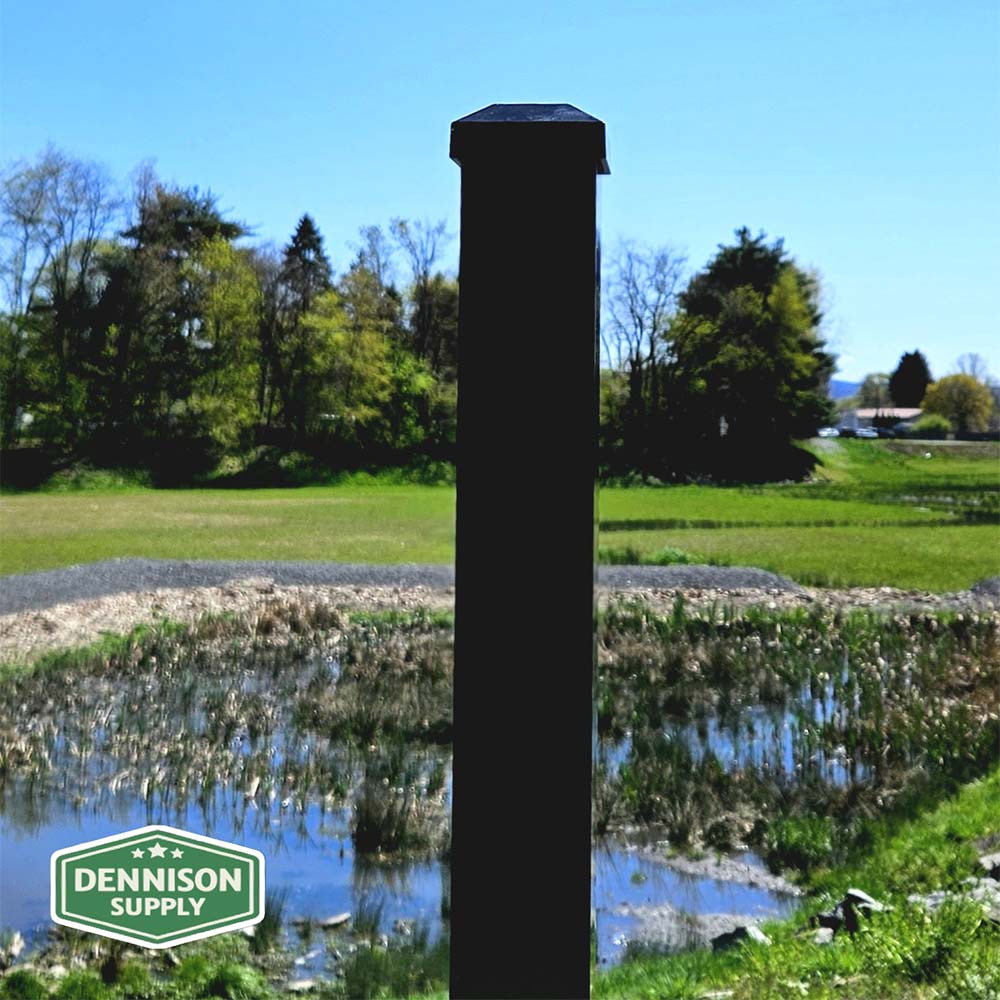

Aluminum Ornamental Blank Post - R-01 Shoemaker
2" x 2" x 72" x .078" black aluminum blank...

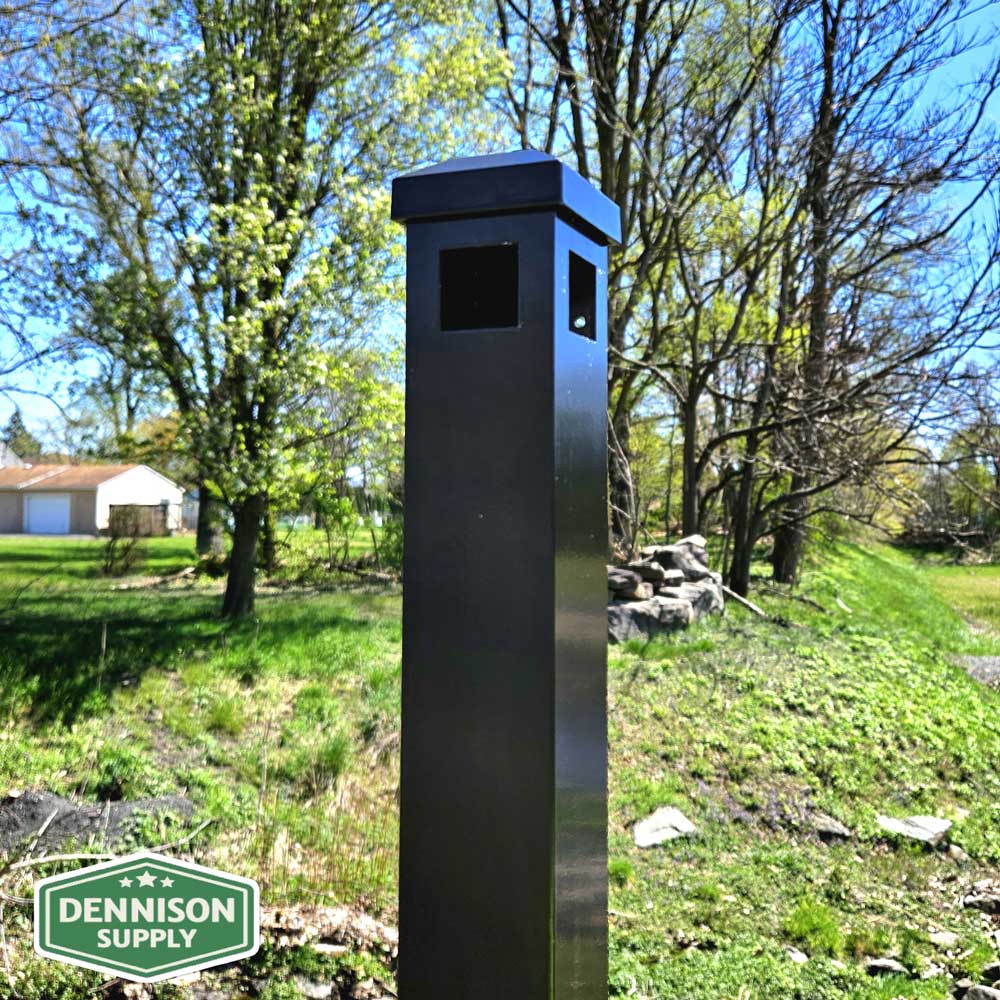

Aluminum Ornamental Corner Post - R-01 Shoemaker
2" x 2" x 72" x .078" black aluminum corner...

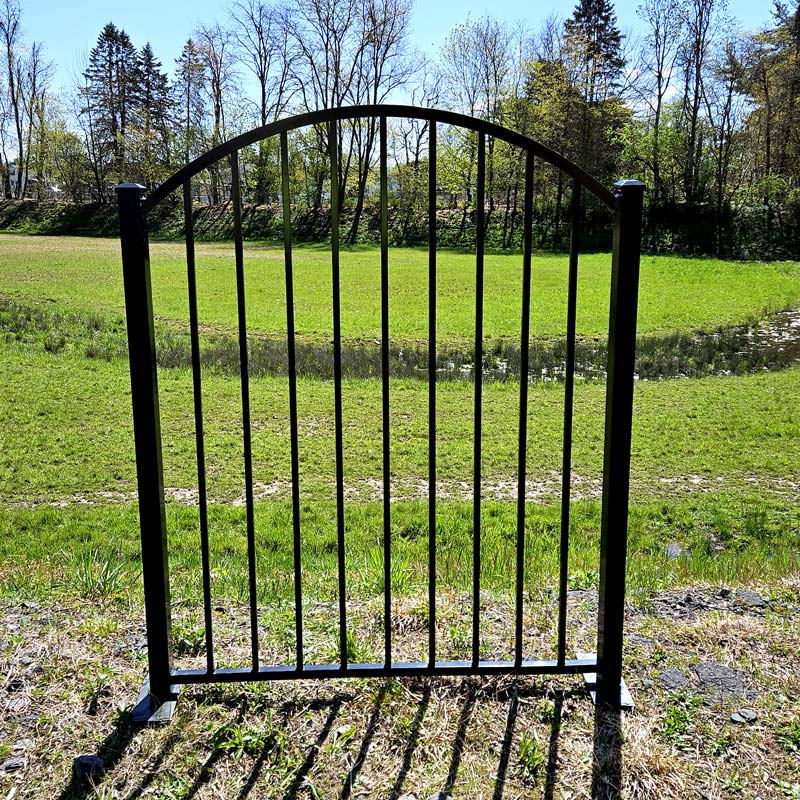

Aluminum Ornamental 48" Arched Gate - R-01 Shoemaker
48" wide x 48" high two (2) rail black aluminum...

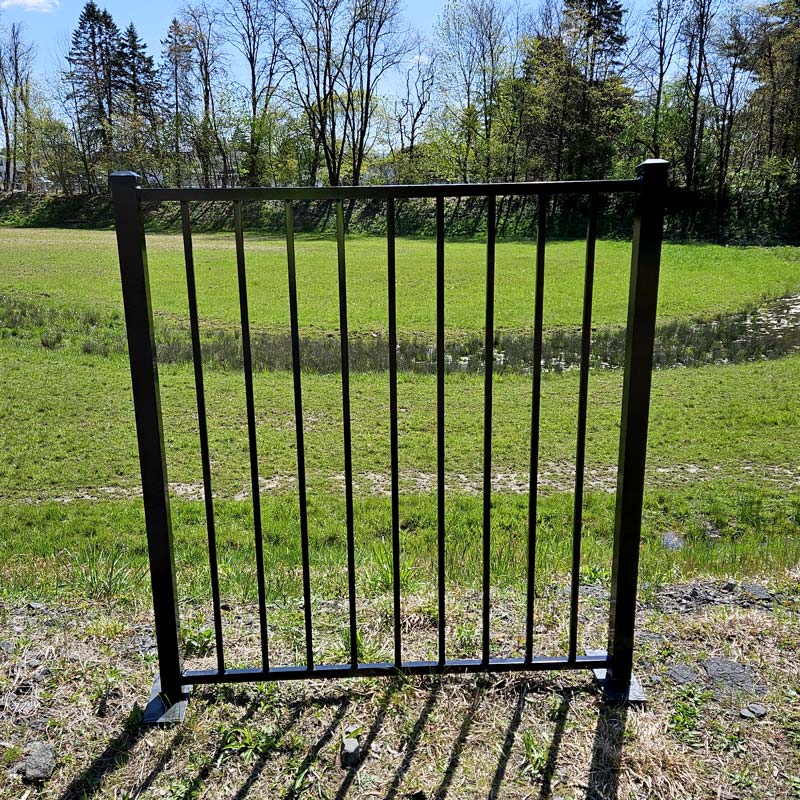

Aluminum Ornamental 48" Gate - R-01 Shoemaker
48" wide x 48" high two (2) rail black aluminum...

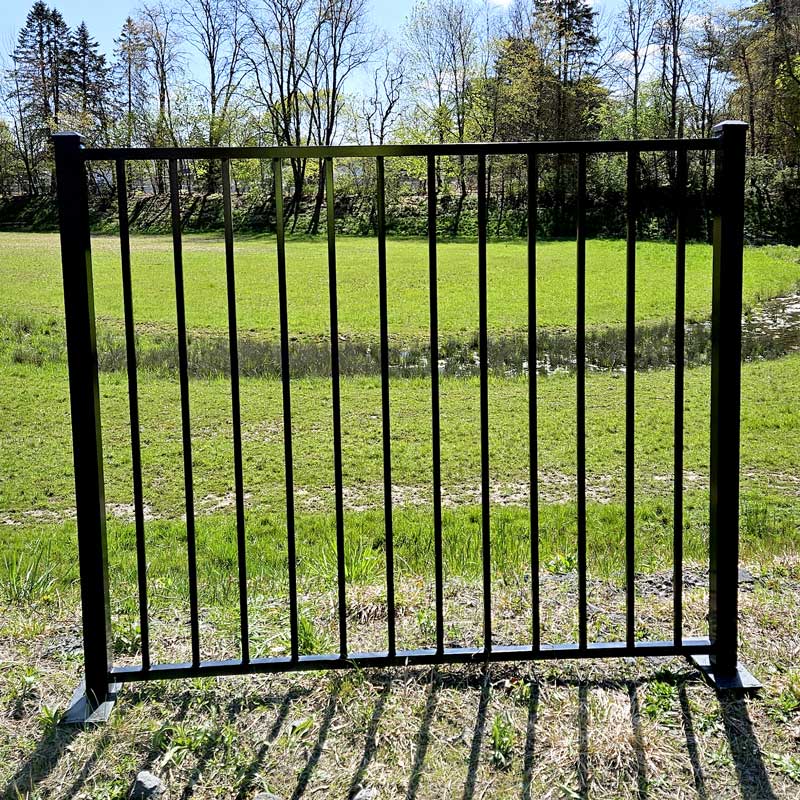

Aluminum Ornamental 60" Gate - R-01 Shoemaker
60" wide x 48" high two (2) rail black aluminum...
Aluminum Ornamental Blank Gate Post - R-01 Shoemaker
2" x 2" x 72" x .125" black aluminum gate...

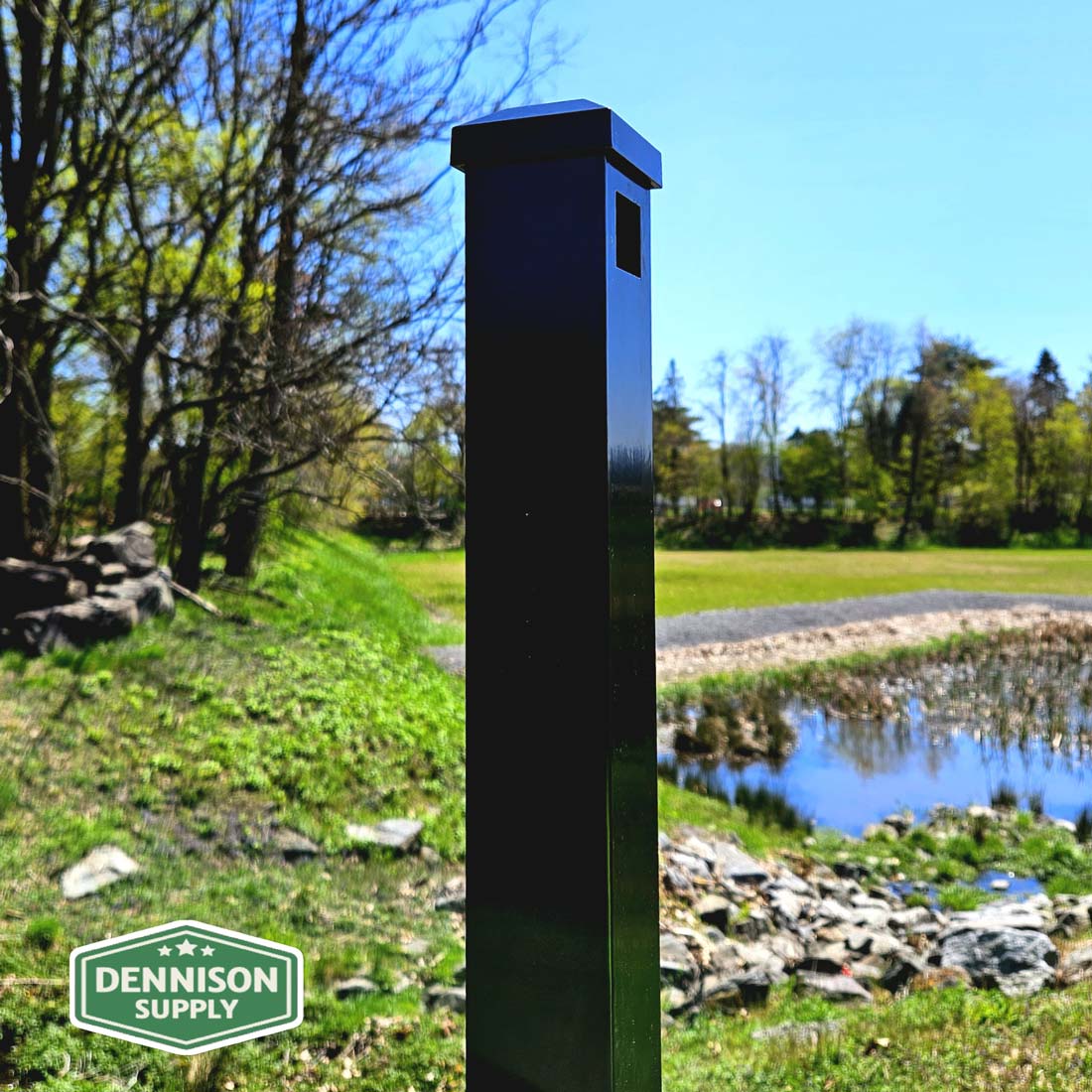

Aluminum Ornamental End Gate Post - R-01 Shoemaker
2" x 2" x 72" x .125" black aluminum gate...
Optional Upgrades
Dennison Supply Self-closing Ornamental Gate Hinge Set
Set of 2 Dennison Supply Self-closing 5 3/4" Black Gate...
Aluminum Ornamental Self-Closing Gate Hinge Set
Set of 2 D&D kwikfit aluminum self closing black gate...
D&D Magnalatch Top Pull 6-Pin Lock - 20"
Aluminum ornamental black gate latch - D&D Magnalatch top pull...
D&D Magnalatch Vertical Pull 6-Pin Lock - 10"
Aluminum ornamental black gate latch - D&D Magnalatch vertical pull...
Accessories

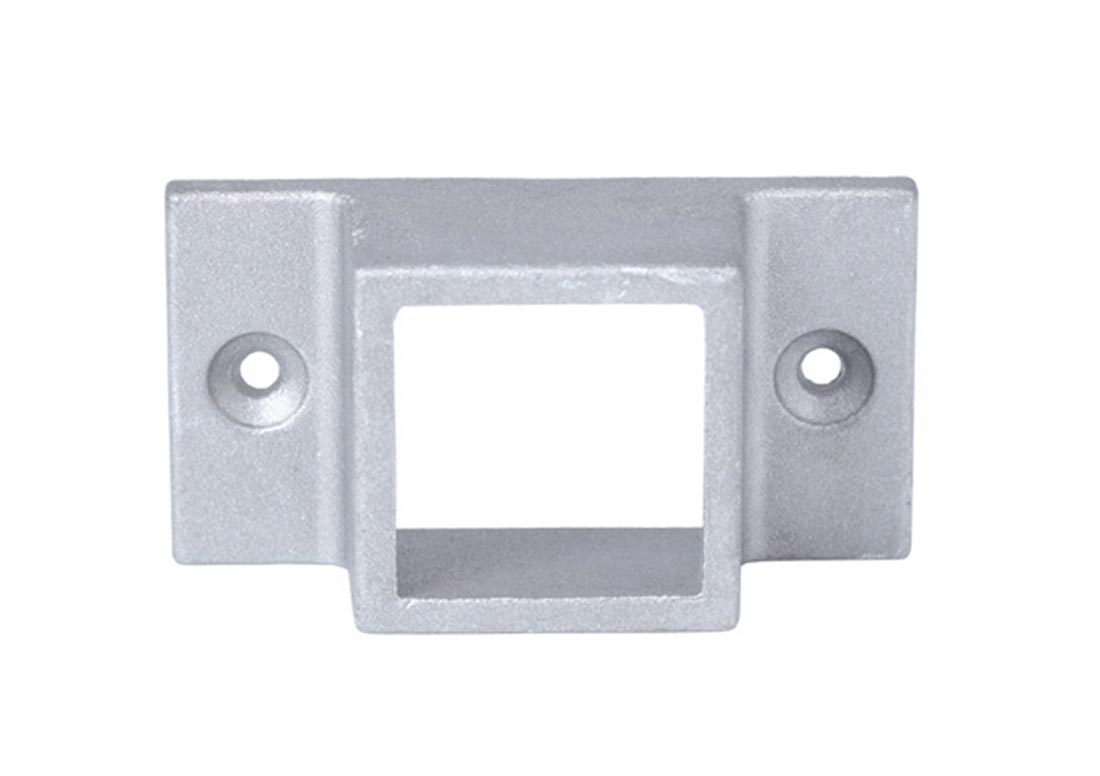

Flat Bracket for Ornamental Fence Panel
Black flat bracket for 1" aluminum fence panel - Residential...

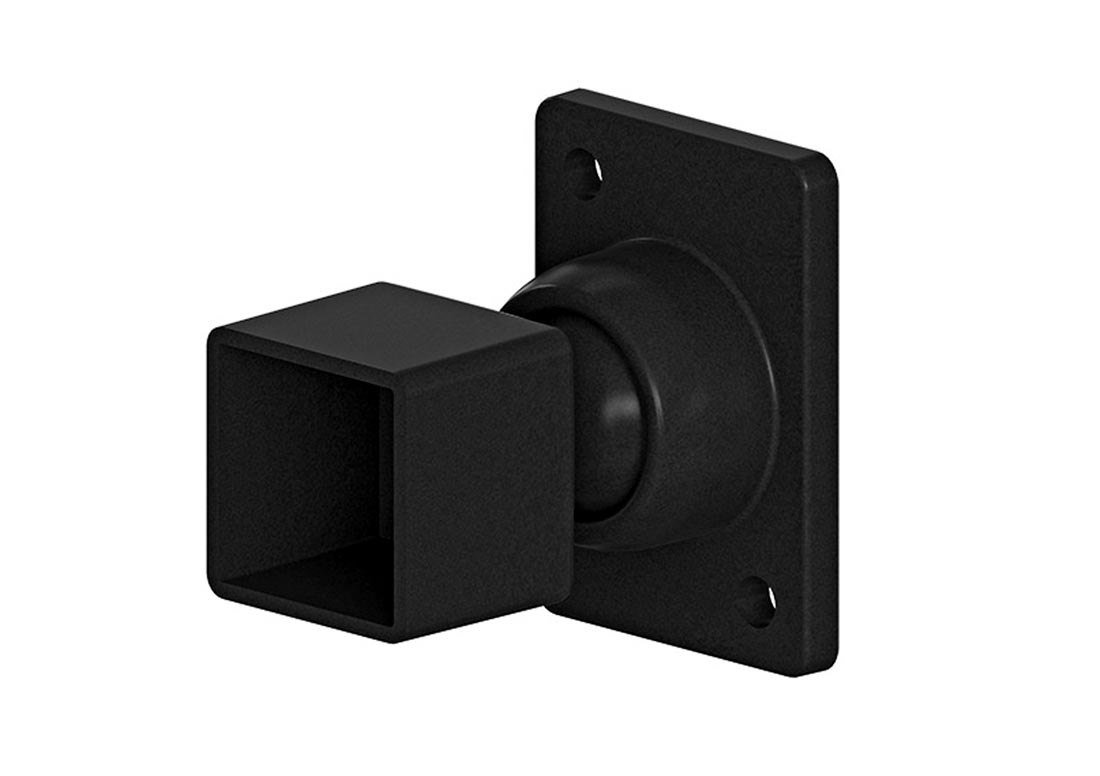

Swivel Bracket for Ornamental Fence Panel
Black swivel bracket for 1" aluminum fence panel - Residential...

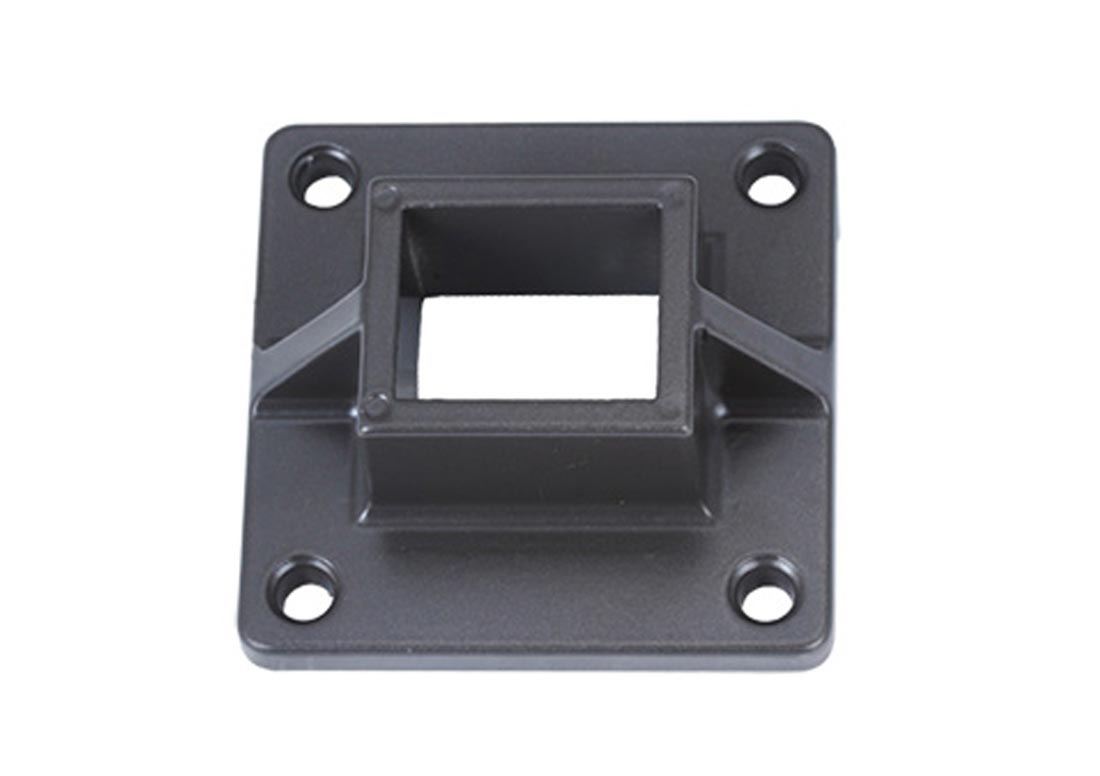

Aluminum ornamental post floor mount - 2 1/2" black
2 1/2" black base plate for aluminum fence posts

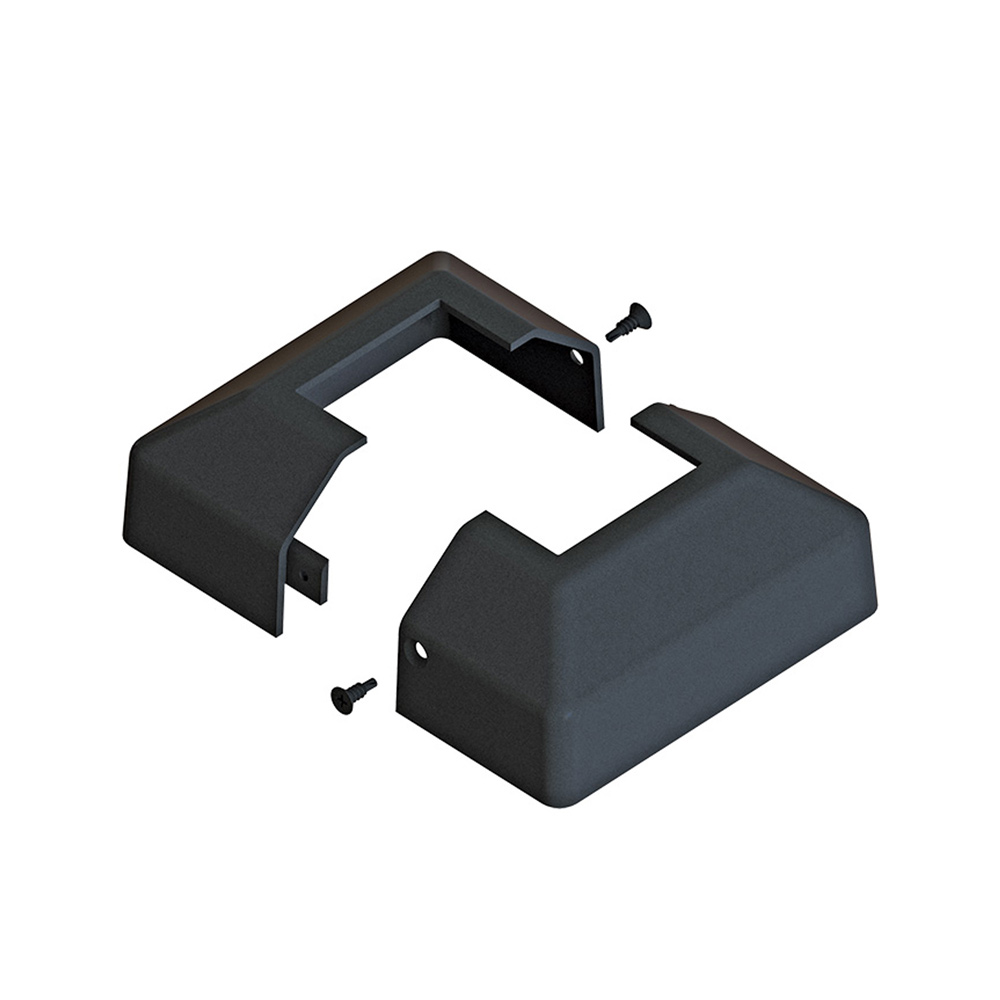

Post Floor Mount 2 pc Cover Plate - 2.5"
2 1/2" black base plate cover for aluminum fence posts
Not sure what you need? Let us help you build a R-01 Shoemaker 2-Rail ornamental fence. Use the provided image and instructions for reference, and fill out the form. Our system will automatically calculate which products and quantities you need.
